Dongsheng Bridge Project

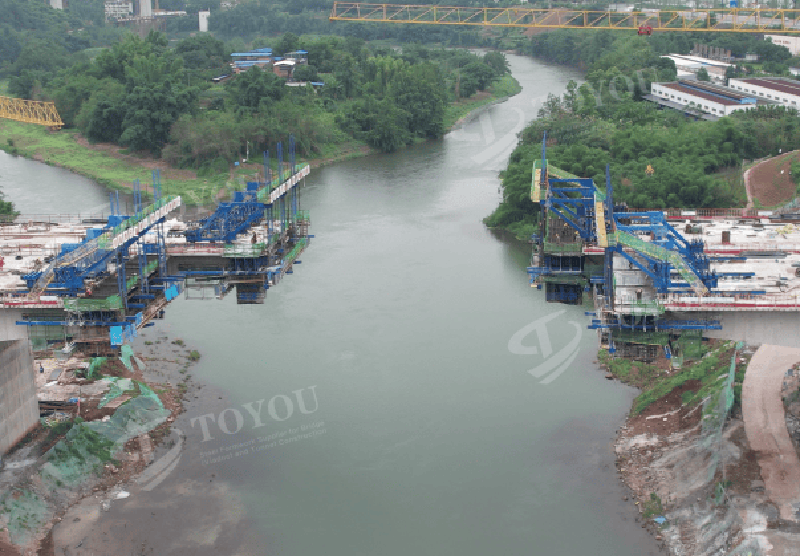

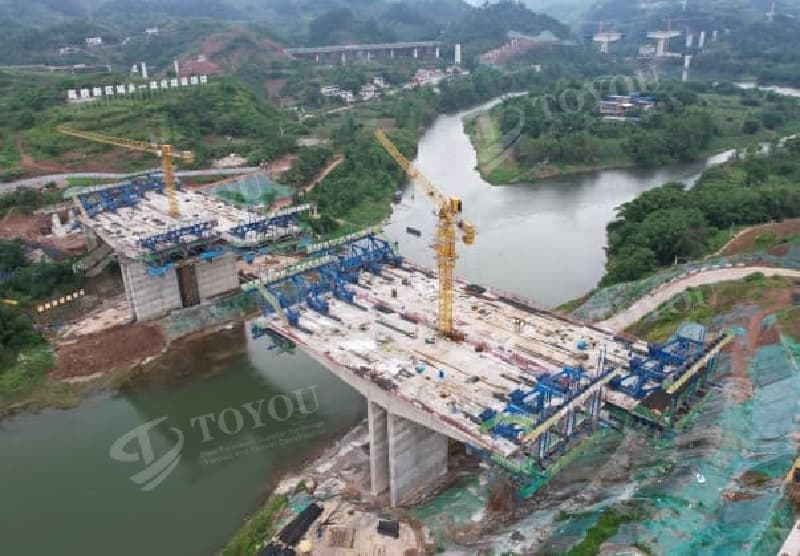

The Dongsheng Bridge is located in Gaoxian County, Sichuan Province. The total length of the route is 325.68 meters, among which the length of the bridge is 238 meters. It is arranged in a double-deck layout, with a bridge width of 40 meters. It adopts a prestressed concrete continuous rigid frame with a span of 60+110+60 meters and is constructed by form traveler cantilever casting method.

The upper structure adopts a cast-in-place prestressed concrete continuous rigid frame. The cross-section of a single-deck bridge uses a single-box double-cell straight web box girder. The height of the beam at the support is 6.5m, while the mid-span is 2.5m. The full width of the top slab of the box girder is 19.75m, and the cantilevers on both sides are both 3m. The thickness of the top slab of the box girder is 28cm, and the thickness of the bottom slab of the box girder is 30~100cm. Both the height of the box girder and the thickness of the bottom slab change according to a quadratic parabola.

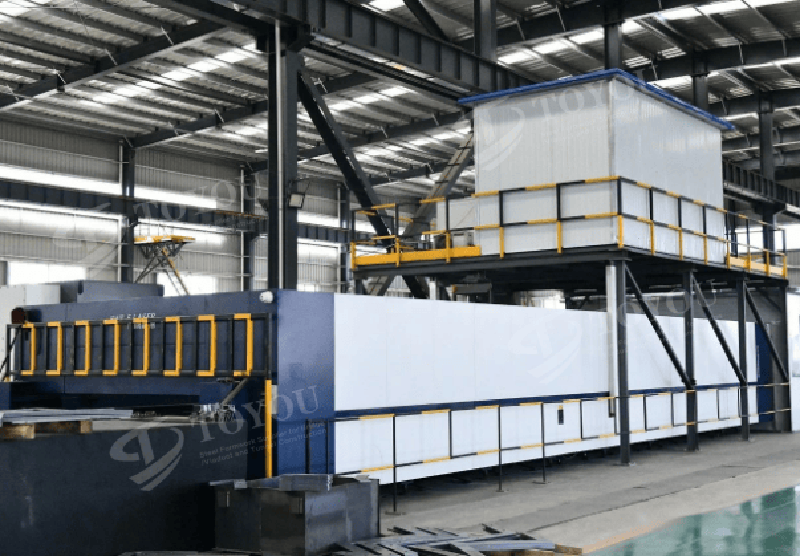

The supply of this project was mainly concentrated in March and April when the demand for form travelers surged. Relying on a variety of automated production equipment and strong production capacity, TOYOU timely completed the product delivery, ensuring the construction progress of the project.

The reliable products and professional services have been unanimously recognized by the project department. TOYOU has a standardized service system and guarantee mechanism. Based on the customer experience, it fully, deeply, meticulously and professionally provides services, comprehensively improving customer satisfaction.

 After the project is completed, it will effectively eliminate the safety hazards of the ferry crossing, facilitate the travel of the people on both sides of the river. At the same time, it will significantly enhance the traffic road network in Gaoxian County and relieve the traffic pressure in the county seat. The form travelers of TOYOU will fully support the project construction, and contribute TOYOU's strength to the early realization of the bridge's full connection and the urban-rural integration construction of Gaoxian County!
